2.4G & BT5.0 Dual Mode Wireless Voice Air Mouse

ODM & OEM

● Private custom symbol design

● Customized logo printing

● Multiple Function options:

-IR & IR learning, universal IR Programmable -RF(2.4g, 433mhz etc) -BLE -Air mouse -Google assistant voice

Send email to us

Product Detail

Product Tags

Product Diagram

Thank you for using our products ever since!

This is a voice air mouse with built-in 6-axis gyroscope sensor and high fidelity voice Microphone. It can realize the functions of traditional remote control, mouse and motion sensing game on Android platform. Plug and play micro receiver for computers, projectors, TV set-top boxes, HTPC, etc

It can completely liberate you from the computei; TV projection and other entertainment equipment, only need to flex your wrist, the direction of your wrist will be converted into the cursor on the screen.

Feel comfortable, convenient, completely avoid the traditional mouse needs drawbacks to the stationary desktop for reference operation or infrared remote control button operation, let you lie playing computer; TV is not tired, casual, completely "contror your computer TV

Product features:

Laser carving Backlit

Dual Mode: 2.4G &BT5.0

High quality voice input

Built in 6-axis gyroscope

Low battery auto reminder

Two key infrared Programming

Multimedia control shortcut key

How to use the IR Programming

The operation steps of infrared programming are as follows:

(take learning the power button on the infrared remote control as an example)

1.Press and hold the [power] button of this product for 3 seconds. When the indicator light flashes slowly, prompt to enter the IR programming mode.

2.Position this product and your TV remote head-to-head on a flat surface with 1 inch apart, press the [power] button of your IR remote control, then The indicator light will go out after flashing, indicating that the infrared programming is completed.

3.There are two buttons [power] and【mute】 can be used infrared programed for this product, and the programming operation can refer to steps 1-2.

Press and hold the [Power] + [Del] buttons for 5 seconds. The indicator light flashes to prompt restore to the factory settings.

How to Change the Cursor Speed

Please hold [OK] button and then dick,You will get a slower speed successfully when the LED light changes from blink to solid.

Please hold [OK] button and then dick，You will get a faster speed successfully when the LED light changes from blink to solid.

Backlight function

After the battery is installed, the backlight function is automaticalty turned on. Long press thebutton to turn off/on the backlight.

The duration of backlight after activation is 5s, and it needs to be activated again after 5s. Press any key can activation the backlight.

Voice function

How to use the voice function

Press and hold Voice Switch" to turn on voice channel.

Release to turn off voice channel.

Low battery reminder

The red light Dashes slowly when the AAA battery power of the product is lower than 2V. It means that the battery need to be replaced at this time.

Sensor Calibration

Automatic calibration:

when the device works, the cursor may drift due to changes in voltage and temperature. Please place the device on flat desktop and keep it still. After the device turns into quiescent mode, wake up again to complete calibration.

Manual calibration:

press and hold the [OK] button and install the battery at the same time. After the green LED light turns from flashing to normally on, place the product flat on the desktop and wait for the indicator to turn to flashing, then complete the manual calibration.

About voice search:

Please refer to the steps in this picture to install [Google Chrome] from the [Google play store] . If the installation still fails to start normally, please continue to install [Google play services] . When starting [Google assistant] , please set the device to allow Google to record audio and allow app permissions.

If The Mkphone Button Can Not Wake Up Google Voice Assistant,

How to Use

For initial use, plug a USB receiver into the USB port of device and wait for 20-60 seconds to install driver of USB receiver Move the mouse, the mouse cursor can move on the screen means that pairing is successful.

If it is unsuccessful, press and hold [OK] and [BACK] buttons, LED light begin to flash. Pairing is successful when LED light stop flashing.

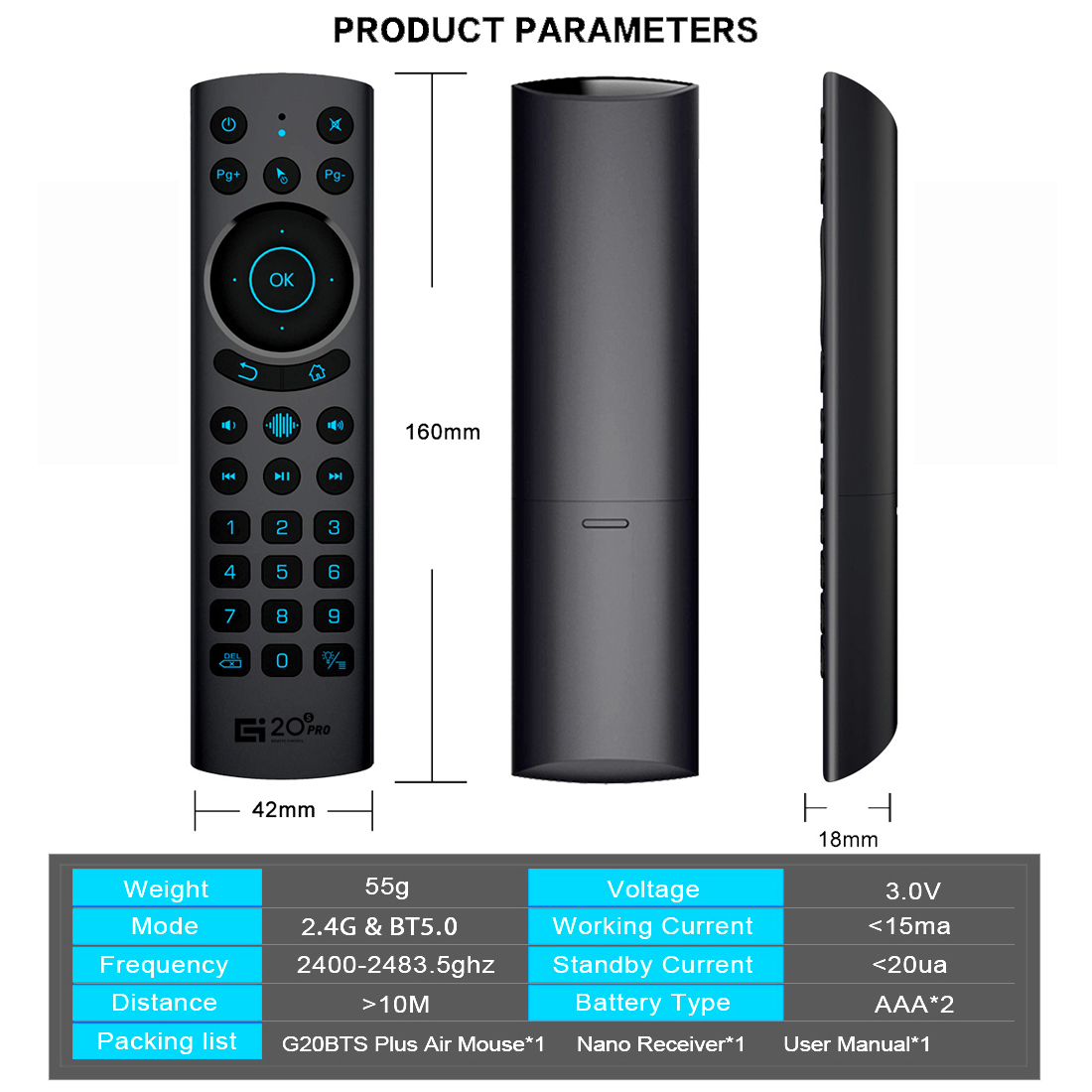

Product specifications

Transmission method: 2.4G RF wireless

Devices name：G20S Pro

Sensors: 6 axis Gyroscope

Number of keys: 30

Range: >10m

Battery Type： AAA*2

Material: ABS Plastic and silicone

Size: 160*42*18MM

Weight: 55g

Note:

1) . Air mouse functions:

Some multi-media device maybe is not available for air mouse, so if the key [OK] doesn't work during device working, please end close air mouse pointer and try again.

2) . Infrared transmission program:

2 keys of infrared program can be available for many popular television, voice devices and A/V receiver; but it is not suitable for all kinds of brands and items. As some remote control cannot be infrared programmed due to Bluetooth or wireless radio frequency technology. Or as the infrared remote control may use an unusual/unique infrared code number; in this case, we cannot program successfully.

3) . Battery power:

Please make sure that the battery is sufficiently charged. When the battery is low, the brightness of the backlit and the stability of the air mouse cursor will be affected.

4) . Space under work

The actual space of this device will be affected by the electronic magnetic field. Please make sure that there is no electromagnetic interference in the working space.

5) . BT5.0 Voice only supports And roid TV.

BT5.0 voice only supports some devices with Android TV voice function. Some models are not suitable for BT5.0 voice, which is a normal phenomenon! It's not about our products!

Description of BT pairing and deleting pairing information.

1.Before using this device, first you must turn on the BT function of the main device.

2.Then long press'OK"+"Returnu keys, when the LED turns to flash quickly, the product enters the pre pairing.

3.Click 'add search new devices" on the main device to find this air remote's name (Example: G20S Pro), Click the name canto connecting.

4.After the product is successfully connected, the direction of the mouse pointer can be controlled by waving in the air.

5.If the connection is not successful, please perform the operation steps of item 2-4 again.

6.Reconnent efficiency description: The normal reconnent time of this product is 3-5 seconds after it is normally paired with the main equipment.

7.This product can only remember the pairing information of one main device, when the product is connected to a new device, the connection of historical devices is not supported after.

8. in this case, you need to delete the historical connection information of this peripheral can be successfully matched for new search.
